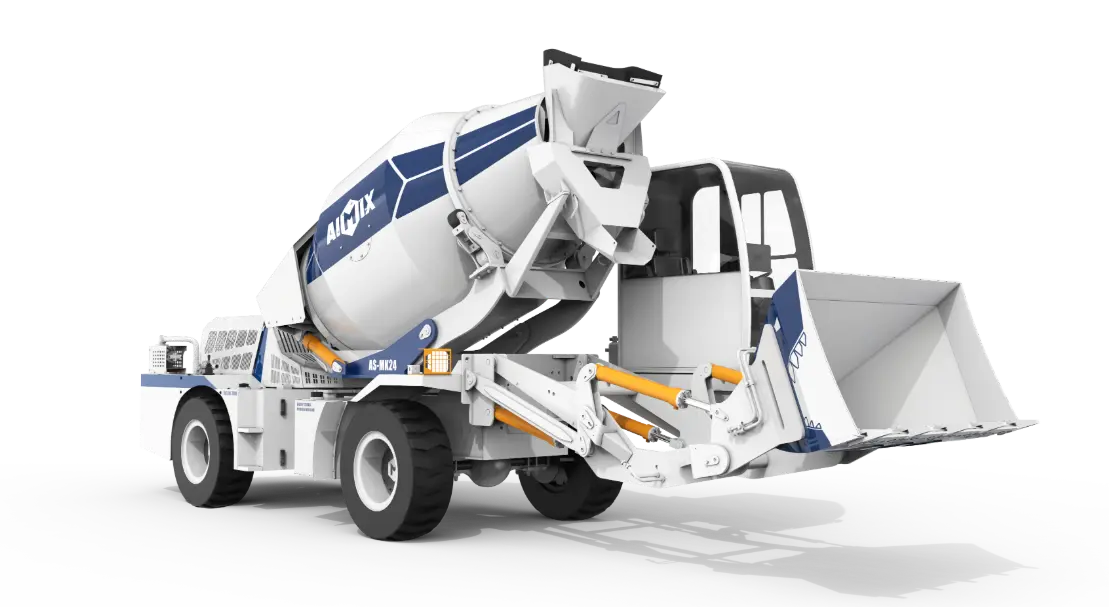

Models Of Self-loading Concrete Mixers
AIMIX self-loading mixer truck can make all grades of concrete by feeding aggregate, sand, cement and additive etc by itself into the mixing drum who can make 270 degree rotation for discharging finished concrete.

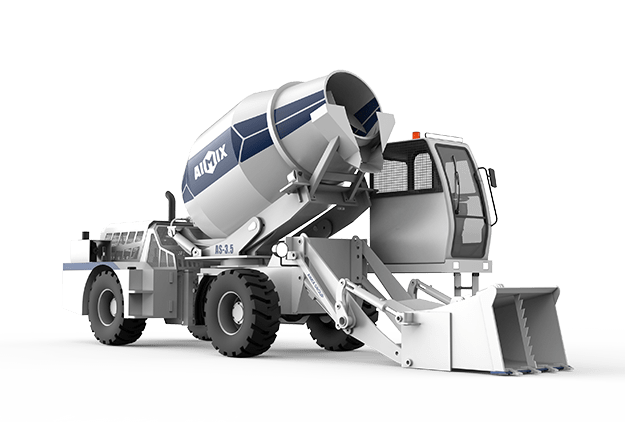

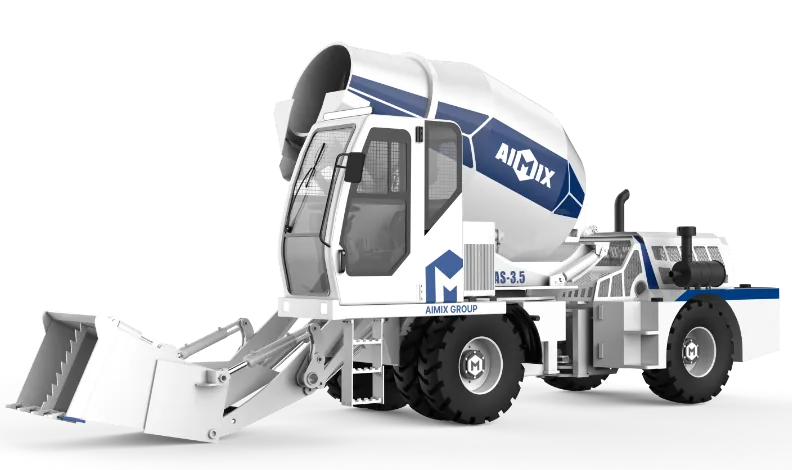

As you can see from the blow products, there are several models like AS1.8, AS2.6, AS3.5, AS4.0 and AS5.5. Take AS3.5 as example, it means the discharge capacity for each batch or working circulation is 3.5m3 and there are about 4 batches or working circulations in one hour. So the capacity for each hour is 3.5*4=14m3/h. If you don’t know which model is suitable for you, feel free to contact us to get our advice.
Concrete Production: 7.2 m³/h
Discharge Output: 1800L
Rated Power: 78 Kw
Concrete Production: 10.4 m³/h
Discharge Output: 2600L
Rated Power: 78 Kw
Concrete Production: 14 m³/h
Discharge Output: 3500L
Rated Power: 91 Kw
Concrete Production: 16 m³/h
Discharge Output: 4000L
Rated Power: 91 Kw
Concrete Production: 22 m³/h
Discharge Output: 5500L
Rated Power: 110 Kw
Concrete Production: 26 m³/h
Discharge Output: 6500L
Rated Power: 132 Kw
Local Service Team & Spare Parts Support
AIMIX has setup a branch in Puchong Selangor, Malaysia and has a service team, offer you local service, including spare parts support, equipment repair and maintenance and so on. Our team of service professionals provides fast, precise support thanks to an integrated relationship with engineering, sales, manufacturing and dealer personnel. Our promise lasts long after a sale and our reputation depends on our customers’ satisfaction.
Ready-to-ship Items Available
- Versatile inventory selection
- Warehouse inspection available
- Instant delivery
- Local support and services
- Professional after-sales service

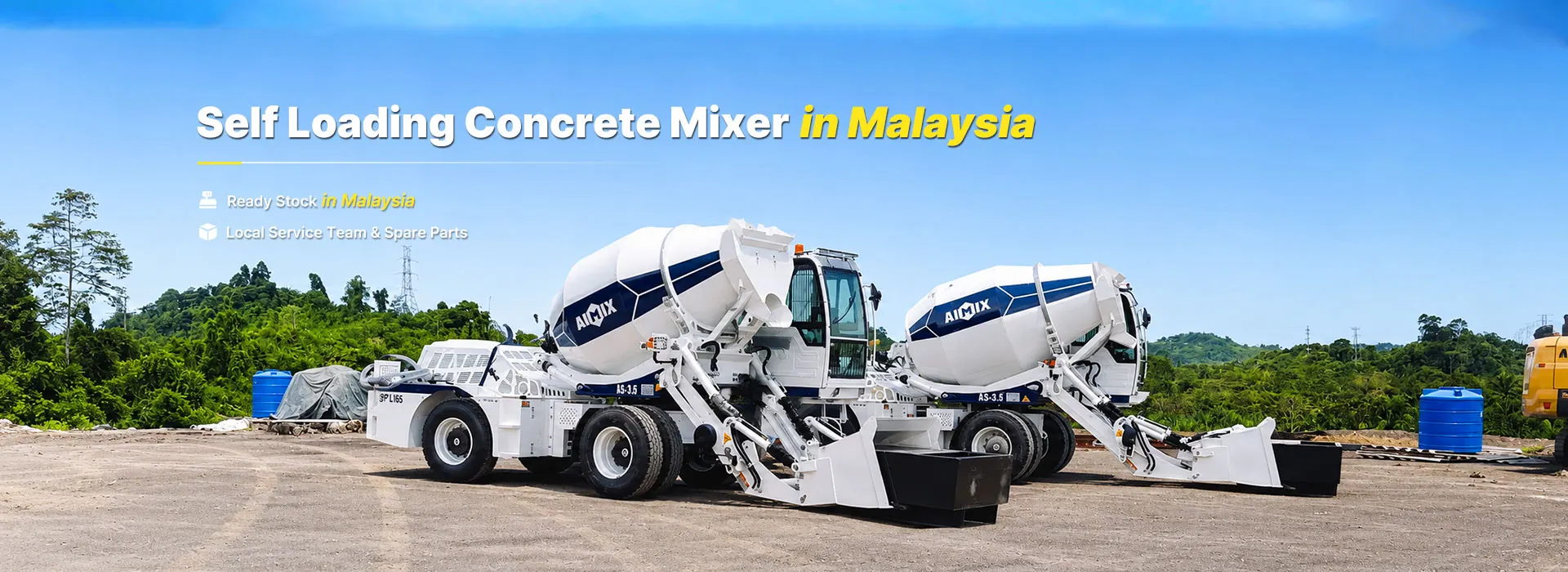

Self Loading Mixer Cases In Malaysia
Based on our overseas warehouse in Malaysia, our self-loading mixer trucks have been reached to many areas in Malaysia, such as Kuala Lumpur, Selangor, Sabah, Puchong, Ipoh, Penang, Bintulu, etc. Welcome to consult for details.
AS3.5 In Sabah
AS3.5 In Kuala Lumpur
AS3.5 In Bintulu
AS3.5 In Ipoh
AS3.5 In Selangor
AS3.5 In Puchong
AS2.6 In Kuala Lumpur
AS3.5 In Ipoh
AS3.5 In Miri
AS4.0 In Lawas
What Types of Project Is Self Loading Concrete Mixer Used For?
Aimix self loading concrete mixer can be used for the following concrete mixing projects:
1. Repair roads, bridges, and harden pavements projects.
2. House construction & Building foundations.
3. Floor construction.
4. Water canals project.
5. Precast concrete pouring project.
Technical Parameters Of Aimix Self-loading Concrete Mixer:
| AS-1.2/1.8/2.6 Self Loading Mixer | AS-3.5/4.0 Self Loading Concrete Mixer | AS-5.5/6.5 Self Loading Concrete Mixer |
|---|
| Equipment Model | AS-1.2 Self Loading Mixer Truck | AS-1.8 Self Loading Mixer Truck | AS-2.6 Self Loading Concrete Mixer truck |
| Discharge Capacity | 1.2 m³ | 1.8 m³ | 2.6 m³ |
| Engine Model | Yunnei 490 Turbo-Charged | Yuchai 4102 Turbo-Charged | Yuchai 4102 Turbo-Charged |
| Rated Power | 55 kw | 78 kw | 78 kw |
| Gear Box Model | ZL-265 Power Shift Gearbox | ZL-280 Power Shift Gearbox | ZL-280 Power Shift Transmission |
| Gear | 2 Forward 2 Back | 2 Forward 2 Back | 4 Forward 4 Back |
| Fuel Tank | 63 Liters | 75 Liters | 75 Liters |
| Total Hydraulic System Capacity | 63 Liters | 75 Liters | 75 Liters |
| Oil Tank | 16 Liters | 16 Liters | 16 Liters |
| Reducer | KY07-2-0 | HJ80-43 | HJ80-43 |
| Hydraulic Pump | CBFC 50/32 | CBGQ 2050/2032 | CBGQ 2050/2032 |
| Hydraulic Motor | BM5-125 | BM5-160 | BM5-160 |
| Water Tank | 400 L | 500 L | 500 L |
| Water Supply | Time Relay | Time Relay | Time Relay |
| Overall Dimensions(L*W*H) | 6400×2550×3300 | 7300×2650×3750 | 7860×2750×4100 |
| Wheelbase (mm) | 2300 | 2600 | 2800 |
| Curb Weight (Kg) | 4185 | 6500 | 6500 |
| Drive Form | Torque Converter | Torque Converter | Torque Converter |
| Drum Rotate | 270º | 270º | 270º |
| Max.Speed (Km/h) | 30 | 30 | 30 |
| Maximum Grade | 30º | 30º | 30º |
| Maximum Turning Radius (mm) | 4700 | 5300 | 5300 |
| Minimum Ground Clearance (mm) | 280 | 380 | 380 |
| Equipment Model | AS-3.5 Type A Self Loading Mixer Truck | AS-4.0 Self Loading Mixer Truck |
| Discharge Capacity | 3.5 m³ | 4.0 m³ |
| Engine Model | YUCHAI 4105 Turbo-Charged | YCD4J22G |
| Rated Power | 85 kw | 85 kw |
| Gear Box Model | ZL-280 Power Shift Gearbox | ZL-280 Power Shift Gearbox |
| Gear | 2 Forward 2 Back,Front Wheels Steering | 2 Forward 2 Back,Front Wheels Steering |
| Fuel Tank | 75 L | 230 L |
| Total Hydraulic System Capacity | 75 Liters | 170 Liters |
| Oil Tank | 16 Liters | 16 Liters |
| Reducer | HJ80-43 | KY07-5-J |
| Hydraulic Pump | CBGQ 2040/2080 | Interpump |
| Hydraulic Motor | BM5-160 | HAA2FM56/61W-VTD527 |
| Water Tank | 620 L | 660 L |
| Water Supply | Time Relay | Time Relay |
| Overall Dimensions(L*W*H) | 7830×2680×4170 | 7640×2870×4750 |
| Wheelbase (mm) | 2900 | 2480 |
| Curb Weight (Kg) | 7500 | 9000 |
| Drive Form | Torque Converter | Torque Converter |
| Max.Speed (Km/h) | 30 | 35 |
| Maximum Gradeability | 30º | 30º |
| Maximum Turning Radius (mm) | 5300 | 4800 |
| Minimum Ground Clearance (mm) | 380 | 330 |
| Equipment Model | AS-5.5 Self Loading Mixer Truck | AS-6.5 cbm Self Loading Mixer Truck |
| Discharge Capacity | 5.5 m³ | 6.5 m³ |
| Engine Model | FAW XICHAI 6110 Turbo-Charged | Weichai deutz 6105 Turbo-Charged |
| Rated Power | 110 kw | 92 kw |
| Gear Box Model | ZL-315 Power Shift Gearbox | ZL-315 Power Shift Gearbox |
| Gear | 2 Forward 2 Back, Front Wheels Steering | 2 Forward 2 Back |
| Fuel Tank | 180 L | 370 L |
| Total Hydraulic System Capacity | 180 Liters | 278 Liters |
| Oil Tank | 16 Liters | 16 Liters |
| Reducer | HJ80-43 | KY07-5-J |
| Hydraulic Pump | CBGQ 2050/2032 | Interpump |
| Hydraulic Motor | USA SUNNY 56 | SUNNY63 |
| Water Tank | 860 L | 1465 L |
| Water Supply | Time Relay | Time Relay |
| Overall Dimensions(L*W*H) | 8450×3100×4580 | 8450×3050×4830 |
| Wheelbase (mm) | 3350 | 2850 |
| Curb Weight (Kg) | 11200 | 12520 |
| Drive Form | Torque Converter | Torque Converter |
| Drum Rotary | 270º | |
| Max.Speed (Km/h) | 42 | 40 |
| Maximum Gradeability | 30º | 30º |
| Maximum Turning Radius (mm) | 6200 | 4800 |
| Minimum Ground Clearance (mm) | 350 |
Note: Due to equipment upgrades, the parameters will be adjusted without notice.
FAQ
Here are some common questions and answers that customers may have regarding self loading concrete mixer:
Self-loading concrete mixer can load raw materials and mix concrete by itself. It is mainly used for small and medium projects or for repair project.
