Aimix group has sold 100+ concrete pumps in Malaysia with high quality & good reputation. Our top 3 most popular concrete pumps in Malaysia are: concrete trailer pump, concrete mixer pump, concrete boom pump, etc. Aimix concrete pumps are suitable for various pumping projects according to clients’ needs and have stable performance. Here are details of these concrete pumps:
Concrete Trailer Pump For Sale In Malaysia:
♦ Max. Theoretical Vertical Conveying Distance 0-200 m
♦ Max. Theoretic Horizontal Conveying Distance: 0-800 m
♦ Diesel engine model: Weichai
♦ Steel pipe and the hose are available
♦ Application: Especially suitable for the place where is lack of electricity or different voltages.
♦ Vertical Conveying Distance 0-200 m
♦ Horizontal Conveying Distance: 0-800 m
♦ Electrical engineering power: 45-90 kw
♦ Steel pipe and the hose are available.
♦ Application: Suitable for high-rise conveying, railway, tunnel, bridge construction and special applications, hydraulic power, mining and national defense.
Aimix concrete trailer pump can be used for various situations according to our Malaysia client’s needs. It can be combined with concrete batching plant, concrete mixer, self loading concrete mixer, concrete mixer truck, etc. It makes concrete pumping more flexible and maximize its value.
2. trailer concrete pump: pumping concrete vertical & horizontal
3. Suitable for the work site is far away from the concrete batching plant. It is a common-use situation.
2. Trailer concrete pump: pumping concrete vertical & horizontal
3. Suitable for middle & small projects: such as construction for house, road, bridge, etc
Concrete Mixer Pump For Sale In Malaysia:
♦ Max. concrete mixing output: 15 m³/h
♦ Vertical convey distance: 0-150 m
♦ Horizontal convey distance: 0-600 m
♦ Steel pipe and the hose are available.
♦ Diesel engine model: Weichai
♦ Application: Especially suitable for the place where is lack of electricity or different voltages.
♦ Max. concrete mixing output: 15 m³/h
♦ Vertical convey distance: 0-120 m
♦ Horizontal convey distance: 0-500 m
♦ Steel pipe and the hose are available.
♦ Electrical engineering power: 37-45 kw
♦ Application: This series concrete pump with mixer combines the functions of mixing and high-pressure pumping all in one.
Aimix concrete mixer pump makes concrete mixing and pumping into one machine, which is more flexible & labor saving for operation. It can save a lot on energy consumption and labor cost. While combine with batching machine, wheel loader, it is much more convenient & cost effective. For details please read the following:
2. Concrete mixer pump: concrete mixing and concrete pumping.
3. suitable for small concrete project
2. Wheel loader: aggregate feeding
3. Concrete mixer pump: concrete mixing and concrete pumping.
Aimix Concrete Pumps Cases In Malaysia:
Aimix concrete pumps are very popular in Malaysia local market. We’ve got high reputation in Malaysia because of our high quality products, customized service & timely after-sales service. Here are some details from our Malaysia concrete pumps cases:
Lately, our Kota Kinabalu clients started using our concrete mixer pump for their row house construction project. Our client also bought a batching machine for this project. Our Malaysia client was planed to use batching machine for aggregate storage & weighing, and then mixing concrete by ABJZ40C concrete mixer pump. Now they are performance well in local worksite. We will keep in touch for any update. Get More Details
Aimix 40 m³/h diesel engine concrete trailer pump was ready to transported to Kota Kinabalu Malaysia in Dec 10th, 2021. This concrete trailer pump was delivered to local city after 7-14 days sea transportation. Our Malaysia client bought it for his 5-6 floors building construction project. Now it has been used for concrete pumping. Get More Details
Because of the efficiency and convenience of equipment use, our concrete pumps are very popular in Penang, Kuala Terengganu, Kuala Lumpur, Kuching, Kate Kinabalu, etc.
Aimix Service To Malaysia Clients:
Aimix provides one-stop service to our Malaysia concrete pump clients, including concrete pumping plans design, door to door installation & commissioning test service, regular maintenance & spare parts exchange service, etc.
Concrete Pumps Technical Parameters

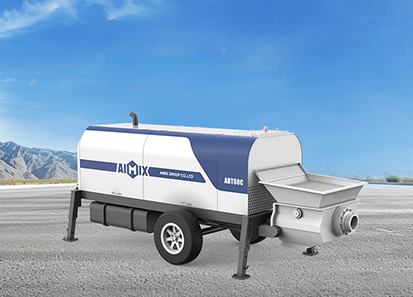

- Diesel Concrete Trailer Pump

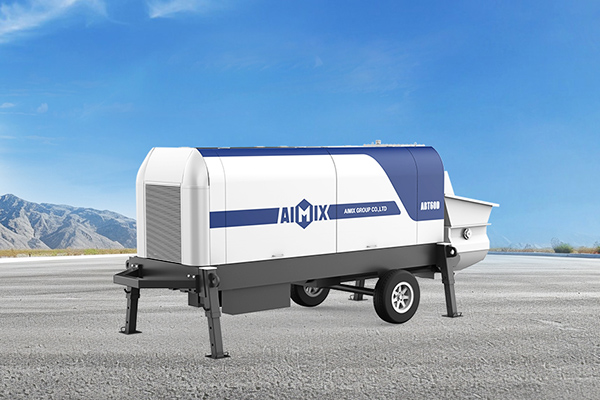

- Electric Concrete Trailer Pump
- Diesel Concrete Mixer Pump
- Electric Concrete Mixer Pump
| Items | Units | Parameters | Parameters | Parameters | |
| ABT40C | ABT60C | ABT80C | |||
| whole performance of machine | Max. theo. concrete output(L./H) | M3/h | 40/26 | 67/45 | 84/45 |
| Max.concrete pumping pressure(H./L.) | MPa | 10/8 | 13/7 | 16/7 | |
| Distribution valve type | S Valve | S Valve | S Valve | ||
| Concrete cylinder diameter×stroke | mm | Φ180x1200 | Φ200x1650 | Φ200x1800 | |
| Hopper capacity x feeding height | L/mm | 400/1100 | 800/1400 | 800/1400 | |
| Outlet diameter | mm | Φ150 | Φ180 | Φ180 | |
| Power system | Diesel engine model | Weichai | Wechai | Wechai | |
| Diesel engineering power | KW | 82 | 129 | 176 | |
| Rotate speed | r/min | 2200 | 2200 | 2200 | |
| Hydraulic system | Circuit type | Open circuit | Open circuit | Open circuit | |
| Pumping system pressure | MPa | 32 | 32 | 32 | |
| Mixing system pressure | MPa | 10 | 10 | 10 | |
| Capacity of oil tank | L | 370 | 560 | 560 | |
| Other parameters | Max. Theoretical Vertical/Horizontal Conveying Distance | m | 120/500 | 180/1000 | 260/1200 |
| Max. aggregate diameter | mm | Slick/scree:40 | Slick/scree:40 | Slick/scree:40 | |
| Inside diameter of delivering pipe | mm | Φ125 | Φ125 | Φ125 | |
| Dimensions：length×width×height | mm | 5000x1850x1700 | 5800x2000x1750 | 6300x2100x2350 | |
| Total weight | kg | 4500 | 6500 | 6900 | |
| Items | Units | Parameters | Parameters | Parameters | |
| ABT40D | ABT60D | ABT80D | |||
| whole performance of machine | Max. theo. concrete output(L./H) | M3/h | 40/26 | 60/36 | 84/46 |
| Max.concrete pumping pressure(H./L.) | MPa | 10/8 | 13/7 | 16/9 | |
| Distribution valve type | S Valve | S Valve | S Valve | ||
| Concrete cylinder diameter×stroke | mm | Φ180x1300 | Φ200x1650 | Φ200x1800 | |
| Hopper capacity x feeding height | L/mm | 400/1250 | 800/1400 | 800/1400 | |
| Outlet diameter | mm | Φ150 | Φ180 | Φ180 | |
| Electrical engineering power | KW | 45 | 90 | 110 | |
| Rotate speed | r/min | 1480 | 1480 | 1480 | |
| Hydraulic system | Circuit type | Open circuit | Open circuit | Open circuit | |
| Pumping system pressure | MPa | 28 | 28 | 32 | |
| Mixing system pressure | MPa | 10 | 10 | 10 | |
| Capacity of oil tank | L | 370 | 560 | 560 | |
| Other parameters | Max. Theoretical Vertical/Horizontal Conveying Distance | m | 120/500 | 160/800 | 200/1000 |
| Max. aggregate diameter | mm | Slick/scree:40 | Slick/scree:40 | Slick/scree:40 | |
| Inside diameter of delivering pipe | mm | Φ125 | Φ125 | Φ125 | |
| Dimensions：length×width×height | mm | 4500x1750x1600 | 5500x2000x1750 | 5800x2100x2350 | |
| Total weight | kg | 3200 | 6000 | 6300 | |
| Items | Units | Parameters | Parameters | |
| ABJZ30C | ABJZ40C | |||
| whole performance of machine | Max. theo. concrete output(L./H) | M3/h | 30 | 40 |
| Mixer rated feed capacity | m3 | 0.56 | 0.56 | |
| Mixer rated discharge capacity | m3 | 0.45 | 0.45 | |
| Max.concrete pumping pressure | MPa | 10 | 10 | |
| Distribution valve type | S Valve | S Valve | ||
| Concrete cylinder diameter×stroke | mm | Φ140x1000 | Φ180x1000 | |
| Hopper capacity | L | 400 | 400 | |
| Outlet diameter | mm | Φ100 | Φ150 | |
| Winding motor power | KW | Hydraulic motor | Hydraulic motor | |
| Stir the motor Power | KW | Hydraulic motor | Hydraulic motor | |
| Water pump motor powe | KW | Hydraulic motor | Hydraulic motor | |
| Power system | Diesel engine model | Yuxing | Weichai | |
| Diesel engineering power | KW | 66 | 82 | |
| Rotate speed | r/min | 1800 | 2200 | |
| Hydraulic system | Circuit type | Open circuit | Open circuit | |
| Pumping system pressure | MPa | 28 | 32 | |
| Mixing system pressure | MPa | 6-8 | 10 | |
| Capacity of oil tank | L | 350 | 350 | |
| Other parameters | Max. Theoretical Vertical/Horizontal Conveying Distance | m | 120/400 | 150/600 |
| Max. aggregate diameter | mm | Slick/scree:20 | Slick/scree:40 | |
| Inside diameter of delivering pipe | mm | Φ100 | Φ125 | |
| Dimensions：length×width×height | mm | 5800x2300x3150 | 6000x2300x3150 | |
| Total weight | kg | 5500 | 6000 | |
| Items | Units | Parameters | Parameters | |
| ABJZ30D | ABJZ40D | |||
| whole performance of machine | Max. theo. concrete output(L./H) | M3/h | 30 | 40 |
| Mixer rated feed capacity | m3 | 0.56 | 0.56 | |
| Mixer rated discharge capacity | m3 | 0.45 | 0.45 | |
| Max.concrete pumping pressure | MPa | 10 | 10 | |
| Distribution valve type | S Valve | S Valve | ||
| Concrete cylinder diameter×stroke | mm | Φ140x1000 | Φ180x1000 | |
| Hopper capacity | L | 400 | 400 | |
| Outlet diameter | mm | Φ100 | Φ150 | |
| Winding motor power | KW | 5.5 | 5.5 | |
| Stir the motorPower | KW | 4.5 | 4.5 | |
| Water pump motor powe | KW | 0.55 | 0.55 | |
| Power system | ||||
| Electrical engineering power | KW | 37 | 45 | |
| Rotate speed | r/min | 1480 | 1480 | |
| Hydraulic system | Circuit type | Open circuit | Open circuit | |
| Pumping system pressure | MPa | 18 | 26 | |
| Mixing system pressure | MPa | 6-8 | 6-8 | |
| Capacity of oil tank | L | 260 | 370 | |
| Other parameters | Max. Theoretical Vertical/Horizontal Conveying Distance | m | 120/300 | 120/500 |
| Max. aggregate diameter | mm | Slick/scree:20 | Slick/scree:40 | |
| Inside diameter of delivering pipe | mm | Φ100 | Φ125 | |
| Dimensions：length×width×height | mm | 3400x1420x1600 | 4250x2300x3150 | |
| Total weight | kg | 2300 | 4500 | |
