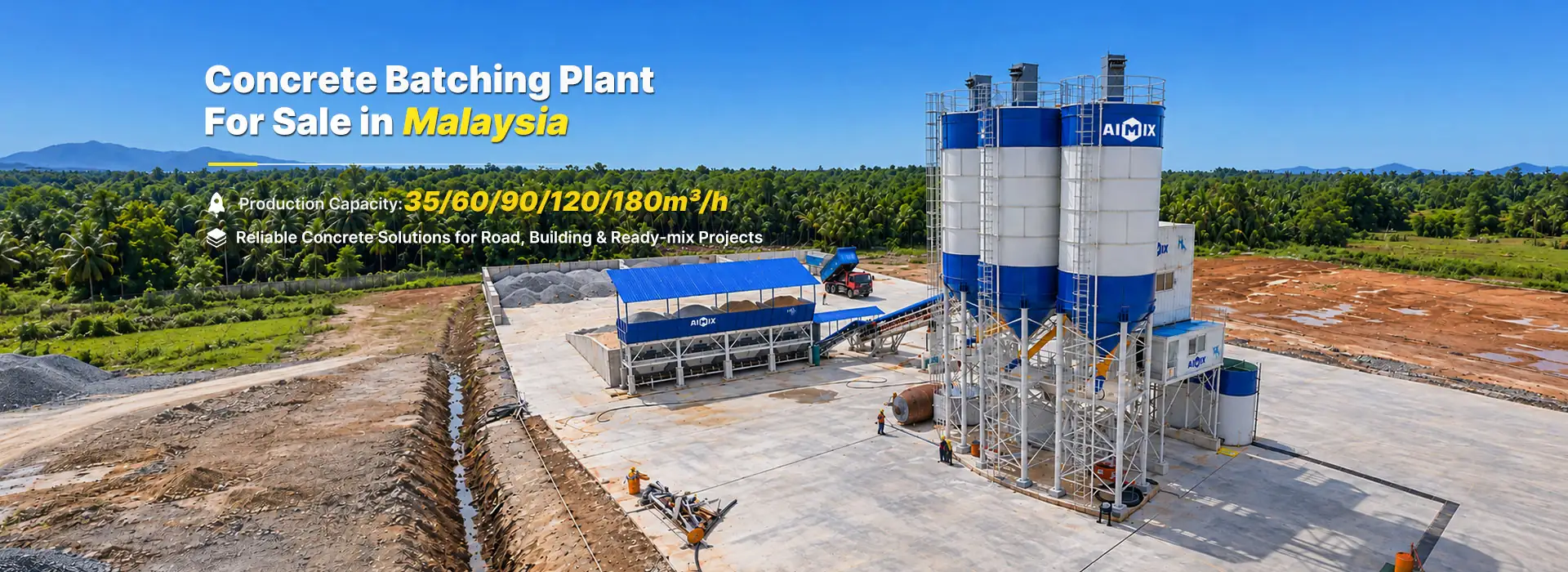

Looking for a reliable concrete batching plant in Malaysia? Aimix, a leading Chinese manufacturer and supplier with a local branch in Malaysia, offers premium batching plants with capacities ranging from 25 to 360 m³/hour. Backed by years of industry expertise, we deliver durable, high-performance solutions tailored to your project needs.
Latest Concrete Batching Plant Projects In Malaysia

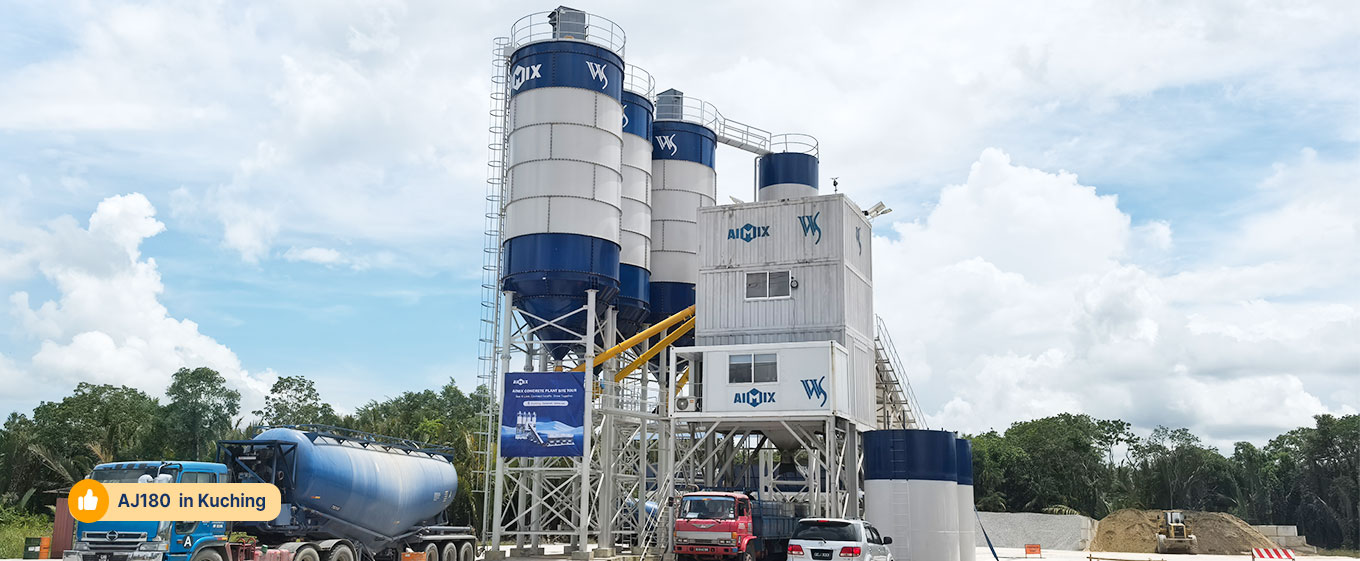

AJ-180 Concrete Batching Plant in Kuching, Malaysia
– Commercial Concrete Production
- Project Time: March 14, 2025
- Mixing Capacity: 180m³/h
- Mixer Discharging Volume (L): 3000(SICOMA)
- Customer’s Needs: Need high-quality mixing plants, stable operation, to meet the needs of commercial concrete sales.
- AIMIX Solutions: Fully automatic AJ-180 concrete batching plant with PLC control system.
Types of Concrete Batching Plant

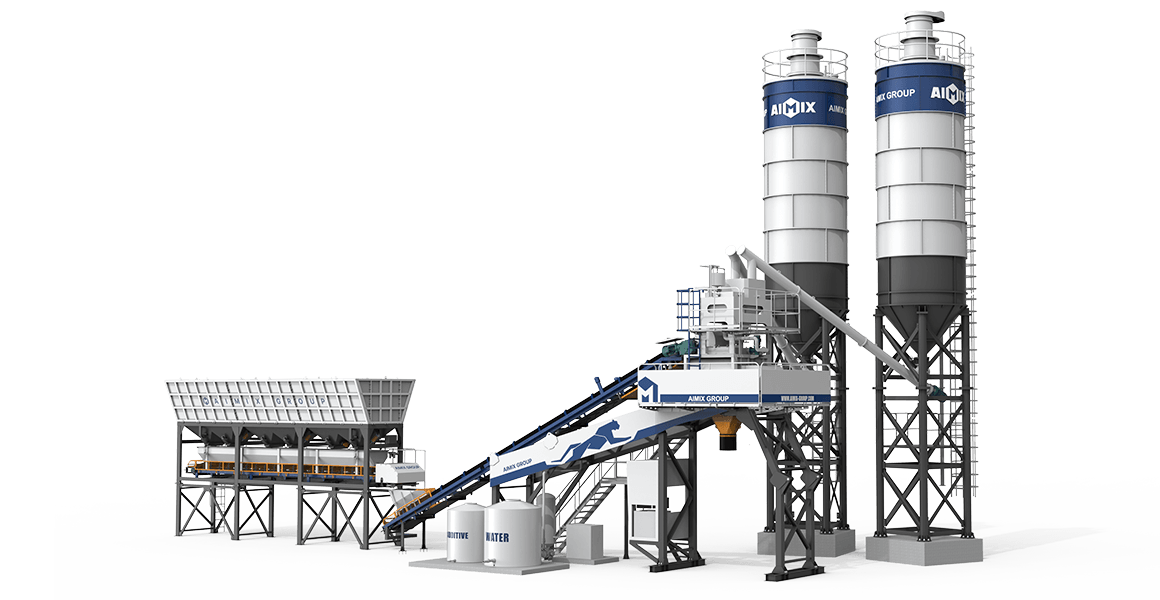

AJ Concrete Batching Plant
Production Capacity: 60-360m³/h
Fully automated operating system
Two/Three/Four Bins Batching Machine
Mixer: Twin shaft mixer, Planetary
Application: Commercial concrete production, Residential housing construction,
Precast concrete production, and other construction fields.
Get A Quote
| Model | Bucket type | Belt type | |||||||
|---|---|---|---|---|---|---|---|---|---|
| AJ-25 | AJ-35 | AJ-50 | AJ-75 | AJ-60 | AJ-90 | AJ-120 | AJ-180 | AJ-240 | |
| Productivity (m³/h) | 25m³/h | 35m³/h | 50m³/h | 75m³/h | 60m³/h | 90m³/h | 120m³/h | 180m³/h | 240m³/h |
| Concrete Mixer | JS500 | JS750 | JS1000 | JS1500 | JS1000 | JS1500 | JS2000 | JS3000 | JS4000 |
| Mixer discharge capacity | 0.5m³ | 0.75m³ | 1m³ | 1.5m³ | 1m³ | 1.5m³ | 2m³ | 3m³ | 4m³ |
| Feeding Model | Lift Hopper | Belt Conveyor | |||||||
| Aggragate Batching Machine | PLD800 | PLD1200 | PLD1600 | PLD2400 | PLD1600 | PLD2400 | PLD3200 | PLD4800 | PLD6400 |
| Aggregate | 2/3/4 | 2/3/4 | 3/4 | 3/4 | 3/4/5 | 3/4/5 | 3/4/5 | 3/4/5 | 3/4/5 |
| Max. Discharging Height (m) | 3.8 | 4.1 | 4.1 | 4.1 | 4.1 | 4.1 | 4.3 | 4.3 | 4.3 |
| Installation Power (kW) | ≈65 | ≈75 | ≈100 | ≈140 | ≈110 | ≈160 | ≈220 | ≈290 | ≈340 |
| Power Supply | 380V/220V/415/440V, 50/60HZ, 3Phase | ||||||||
AJY Mobile Concrete Batching Plant
Production Capacity: 60-120m³/h
Cement Silo: Horizontal/Vertical(optional)
Movement Mode: Semi-trailer
Easy to disassemble, high mobility, convenient and fast, strong site adaptability.
Suitable for concrete production projects with limited construction sites.
Applied for precast concrete production, residential housing construction, road construction, etc.
Get A Quote
| Parameters/Model | AJY-25 | AJY-35 | AJY-60 | AJY-75 | AJY-90 | AJY-120 |
|---|---|---|---|---|---|---|
| Mixer | JS500 | JS750 | JS1000 | JS1500 | JS1500 | JS2000 |
| Mixer discharge capacity | 0.5m³ | 0.75m³ | 1m³ | 1.5m³ | 1.5m³ | 2m³ |
| Productivity (m³/h) | 25m³/h | 35m³/h | 60m³/h | 75m³/h | 90m³/h | 120m³/h |
| Aggregate Material Quantity (m3) | 2×6m3 | 2×8m3 | 2×10m3 | 2×10m3 | 2×12m3 | 2×12m3 |
| Discharging Height (m) | 3.8 | 3.8 | 3.8 | 3.8 | 3.8 | 3.8 |
| Weighing Accuracy | Aggregate Weighing Accuracy： ±2% | |||||
| Powder Material Weighing Accuracy：±1% | ||||||
| Water Weighing Accuracy：±1% | ||||||
| Additive Weighing Accuracy： ±1% | ||||||
| Installation Power (kW) | ≈60.8 | ≈72.3 | ≈92 | ≈102 | ≈120 | ≈160 |
| Traction Type | Semi-trailer | |||||
| Power Supply | 220V/415V/440V/380V/, 50HZ/60HZ, 3Phase | |||||

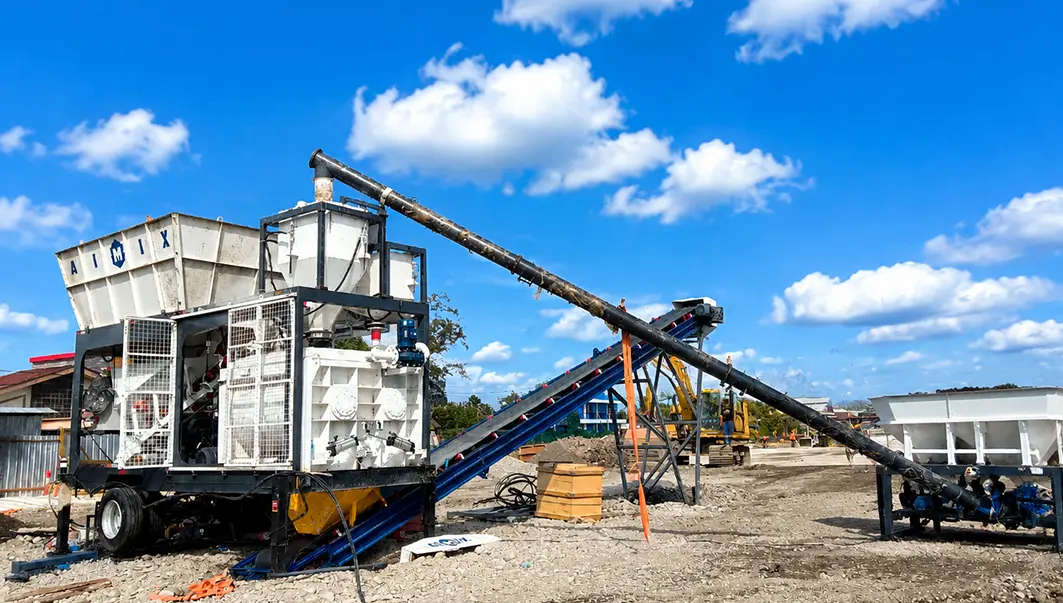

AJSY On-site Mobile Batching Plant
Production Capacity: 20m³/h, 40m³/h
Max. Aggregate Size: 80/60 mm
Equipped with JS Twist Shaft Mixer
Features:
1. Mixing System: Structural upgrade → 30% increased
mixing capacity;
2. Control System: Industry-first intelligent wireless remote
operation → Reduces crew to just 1 operator;
3. Batching System:
<1% weighing error (vs. industry-standard 2%);
Simultaneous weighing & mixing → Continuous production;
Get A Quote
Hot Selling Models in Malaysia
Production Capacity: 60 m³/h
Mixer: twin shaft mixer, planetary
Mixer Discharging Volume (L):1000
Feeding Volume (L):1600
Aggregate Size (mm):80/60
Cement Silo (t) (optional):2×100
Application: Mainly used in the medium-sized road construction, residential building construction, concrete precast construction, etc.
Production Capacity: 90 m³/h
Mixer: twin shaft mixer, planetary
Mixer Discharging Volume (L):1500
Feeding Volume (L):2400
Aggregate Material Quantity (m3): 15×4
Cement Silo (t) (optional): 2×100
Application: Medium and large-sized civil building construction projects, precast concrete production and commercial concrete production.
Production Capacity: 90 m³/h
Mixer: twin shaft mixer, planetary
Mixer Discharging Volume (L): 2000
Feeding Volume (L): 3200
Aggregate Material Quantity (m3): 15×4
Cement Silo (t) (optional): 4×100
Application: Large concrete production projects, construction of civil buildings, production of precast concrete elements.
Production Capacity: 180 m³/h
Mixer: twin shaft mixer, planetary
Mixer Discharging Volume (L): 3000
Feeding Volume (L): 4800
Aggregate Material Quantity (m3): 20×4
Cement Silo (t) (optional): 4×100
Application: Large concrete production projects, construction of civil buildings, production of precast concrete elements.
Concrete Production Solutions
| Application Fields |
 |
 |
| Production Capacity | 90m³/h, 120m³/h, 180m³/h, 240m³/h, 360m³/h | 25m³/h, 35m³/h, 60m³/h, 75m³/h, 90m³/h |
| Model | AJ-90, AJ-120, AJ-180, AJ-240, AJ360 | AJ-25, AJ-35, AJ-50, AJ-75, AJ-90 |
| Applications | Suitable for large construction projects and infrastructure development:
|
Suitable for precast concrete production:
|
| Features | Continuous batch production, direct supply to construction sites, and quick response to orders are required. | Factory-based, standardized components (beams, pipes, panels). |
AIMIX Concrete Batching Plant Projects In Malaysia
AIMIX group has been specializing in the design, production and sale of construction equipment for many years. So far, AIMIX concrete batching plants in Malaysia have covered in these regions and cities: Penang, Kuala Lumpur, Ipoh, Kuching, Kota Kinabalu, Miri, Seberang Perai, etc.

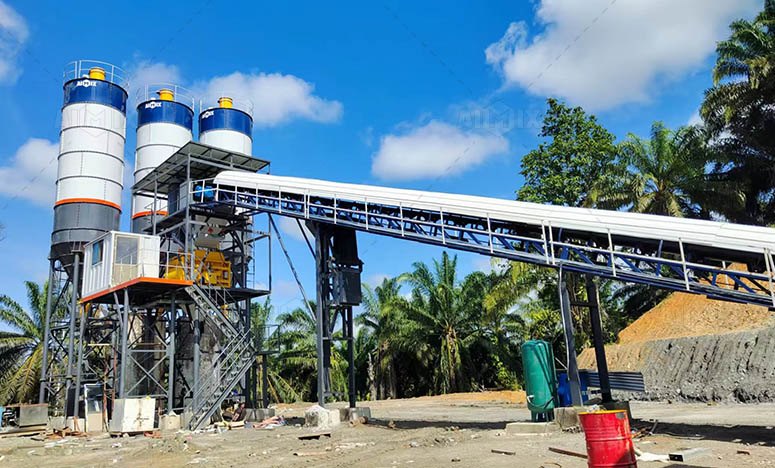

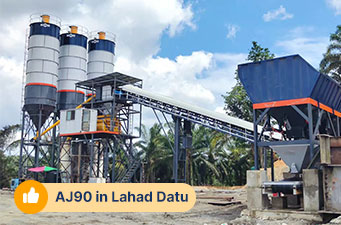

AJ90 Concrete Batching Plant in Lahad Datu, Malaysia – Pan Borneo Highway Construction Projects
- Project Time: June, 2025
- Mixing Capacity: 90m³/h
- Mixer: twin shaft mixer
- Project Brief: Used in Pan Borneo highway projects(remote area) to produce concrete to complete the concrete ditch pouring task on both sides of the highway.
- What the client wants to achieve: Make sure the concrete used for the gutters is strong enough, workable (easy to cast), uniform in appearance, and suitable for tropical climates.
- Solution: AJ90 Concrete batching plant to ensure the concrete supply is stable, continuous and of controllable quality, meeting the design and construction requirements.

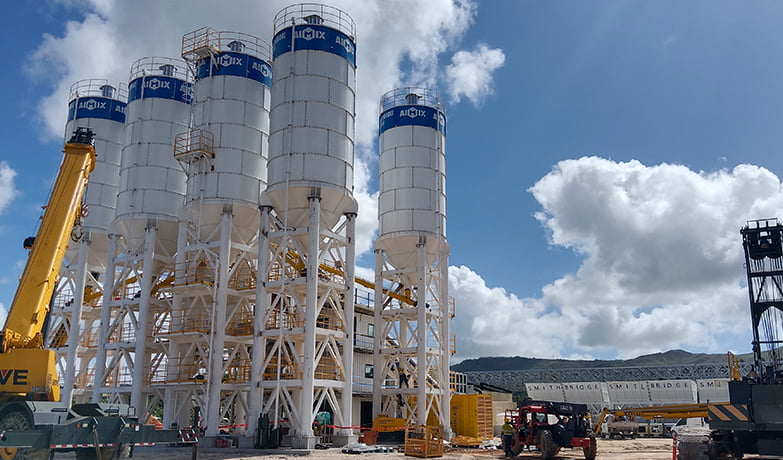

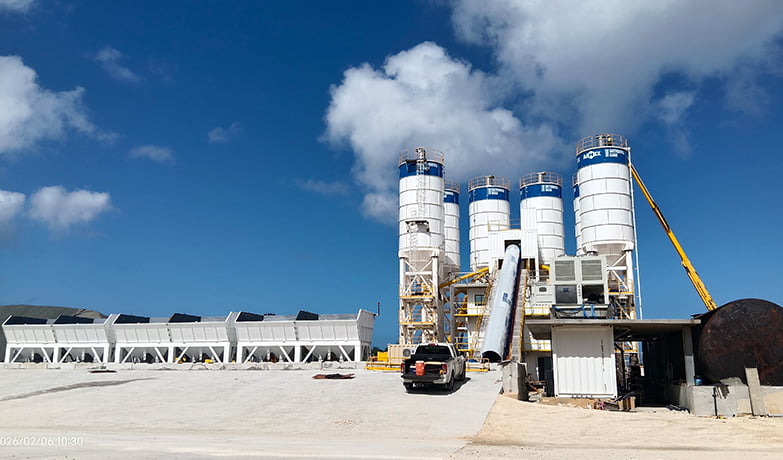

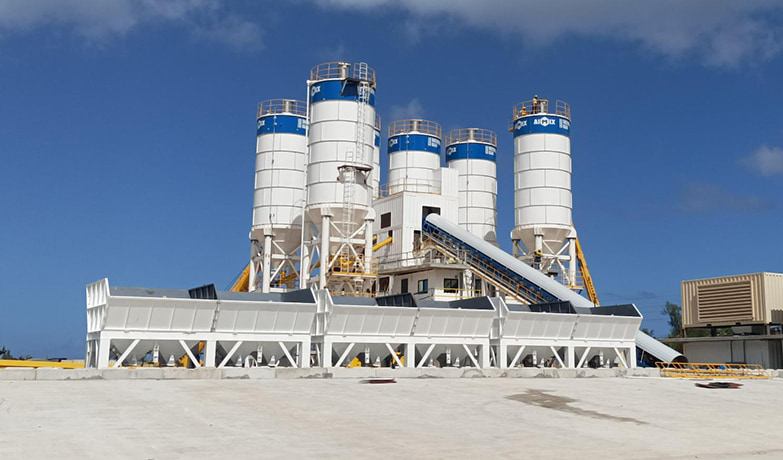

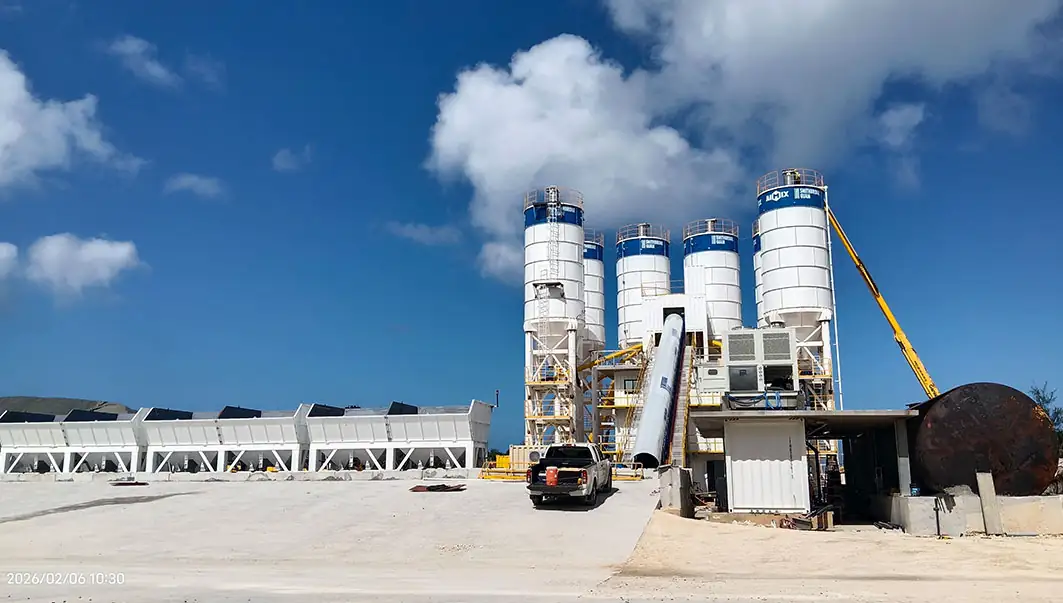

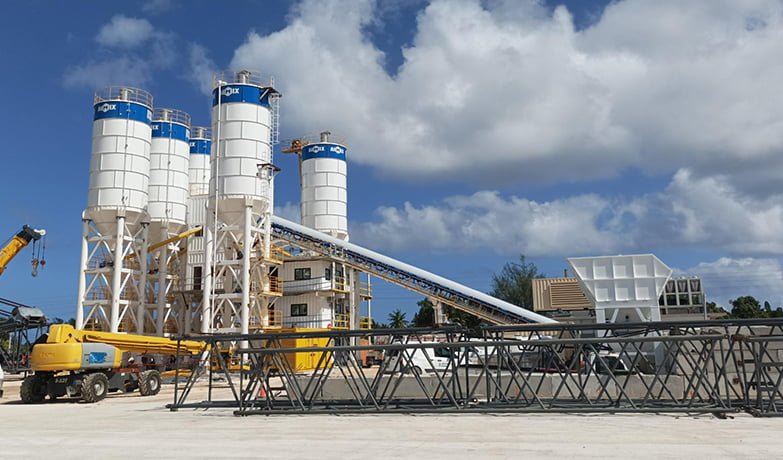

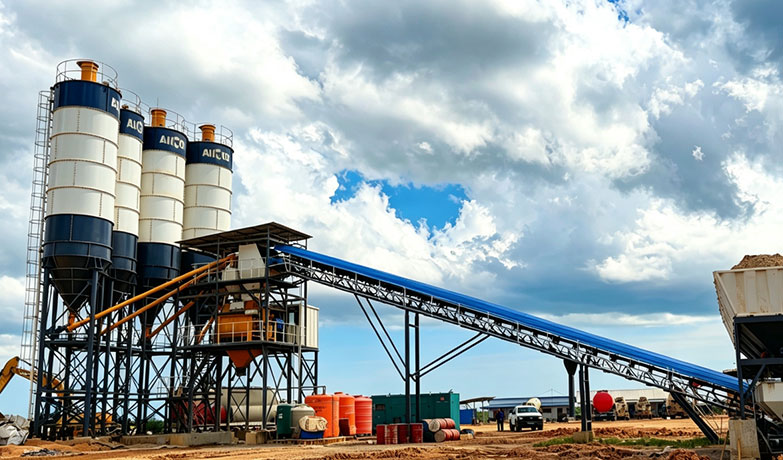

AJ180 Stationary Concrete Batching Plant – For Commercial Concrete Production
- Mixing Capacity: 180m³/h
- Mixer: twin shaft mixer
- Mixer Discharging Volume (L): 3000
- Feeding Volume (L): 4800
- Aggregate Material Quantity (m3): 20×4
- Cement Silo (t) (optional): 4×100
- Customer’s Need: The performance of the original 90m³/h concrete plant at the customer’s site was not up to standard.
- AIMIX Solution: Provide customers with AJ-180 concrete plants with a capacity of at least 120-150 m³ per hour, dispatch engineers to supervise installation and train operators.

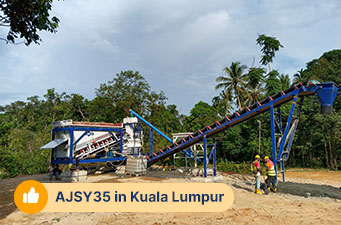

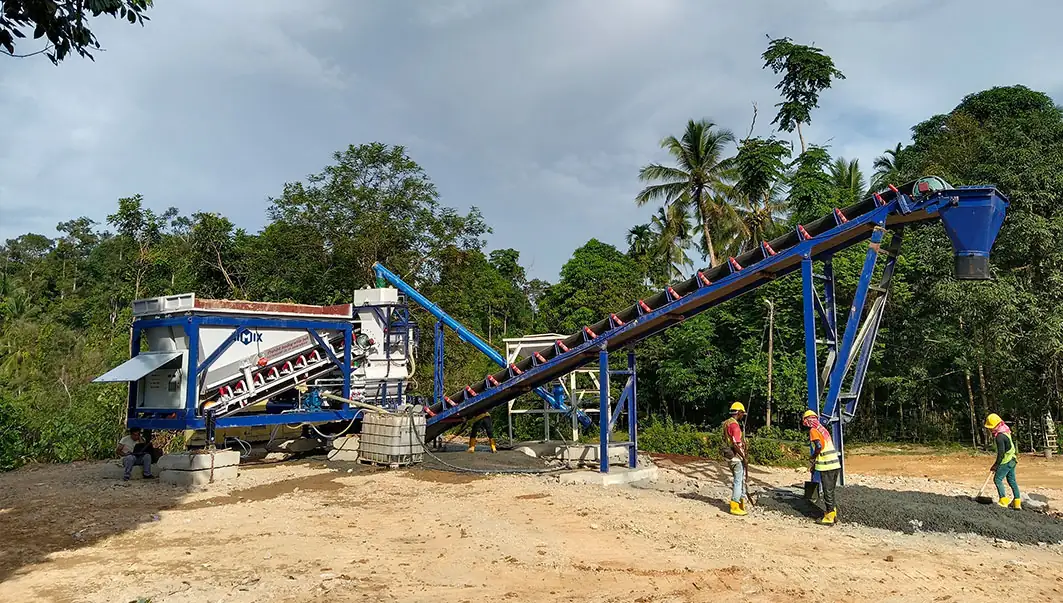

AJSY35 Mobile Concrete Batching Plant in Kuala Lumpur
- Mixing Capacity: 35m³/h
- Mixer: JS750
- Feeding Way: Belt type
- Delivery Time: June, 2025
- Application: House construction, own construction project use.
- Advantages: It can be quickly installed and disassembled, and is convenient for transfer, which can meet the needs of small construction projects.

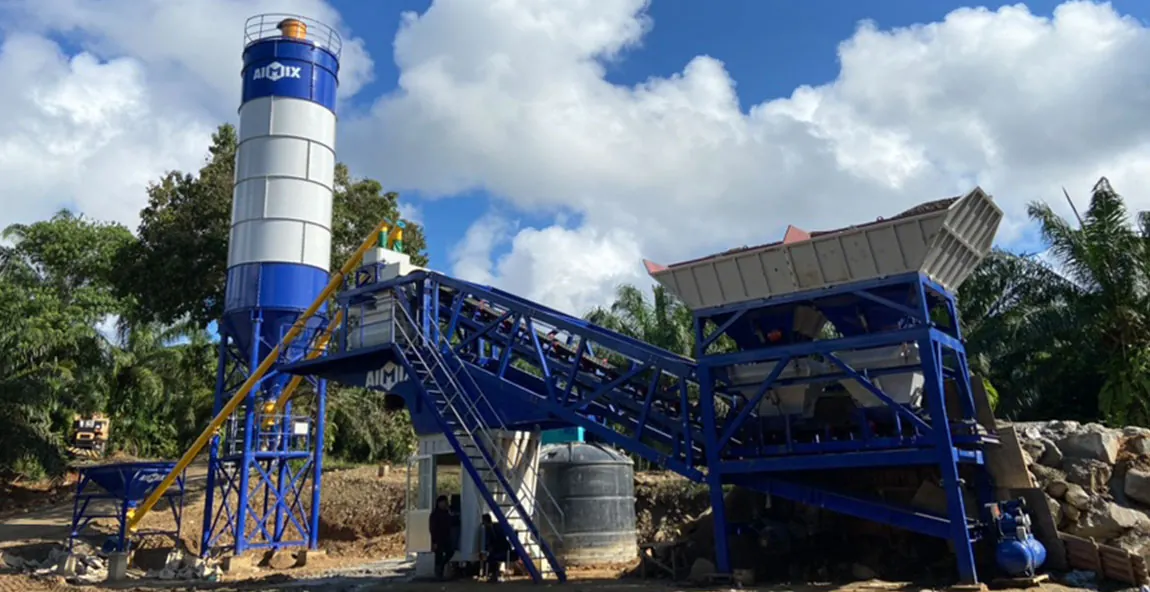

AJY35 Mobile Batching Plant in Malaysia
- Mixing Capacity: 35m³/h
- Mixer: Twin shaft mixer
- Mixer Discharging Volume (L): 750
- Issues faced by customers: The seaside area is too far from the commercial concrete mixing plant and it is difficult to get concrete.
- What the client wants to achieve: Fortifications against high tides. Construction technology: Lay large stones on the coast to make a cushion layer, then pour concrete to reinforce it.
- Solution: AJY35 mobile concrete batching plant, convenient for transfer.
- Application Field: For road construction

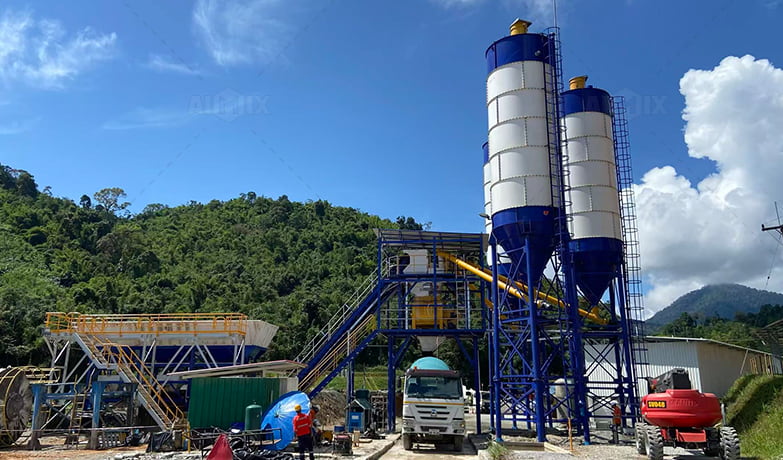

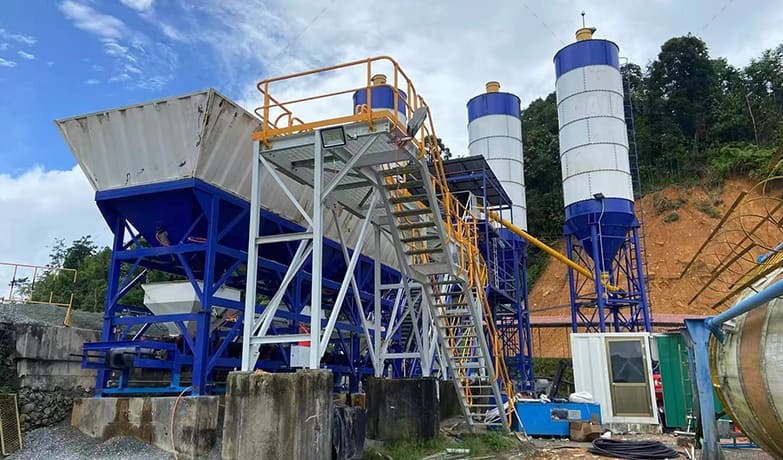

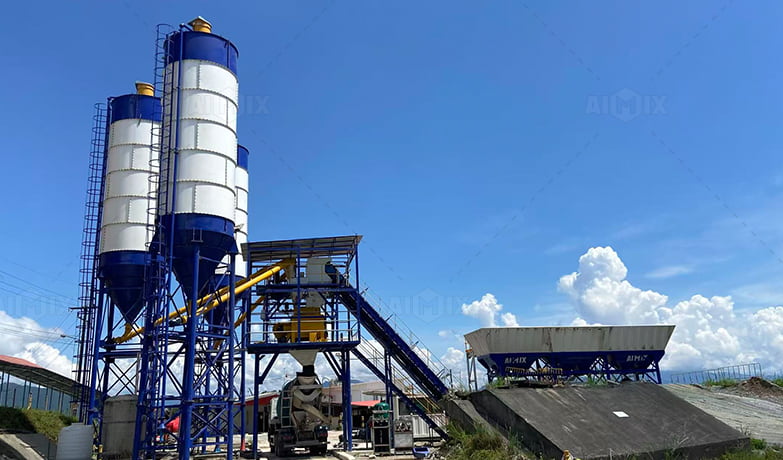

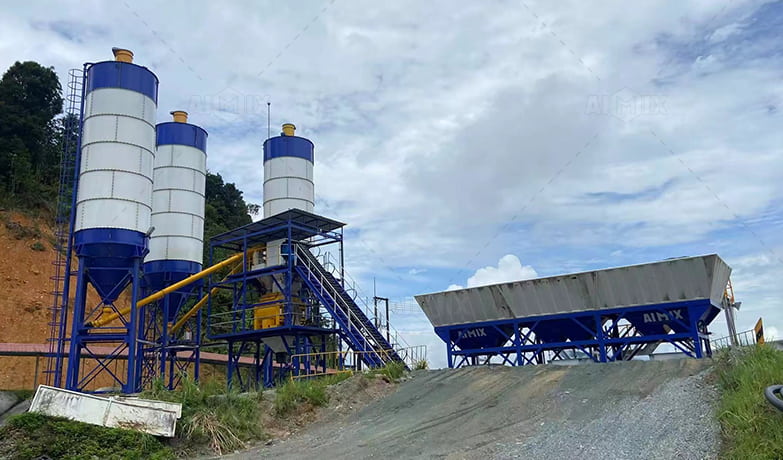

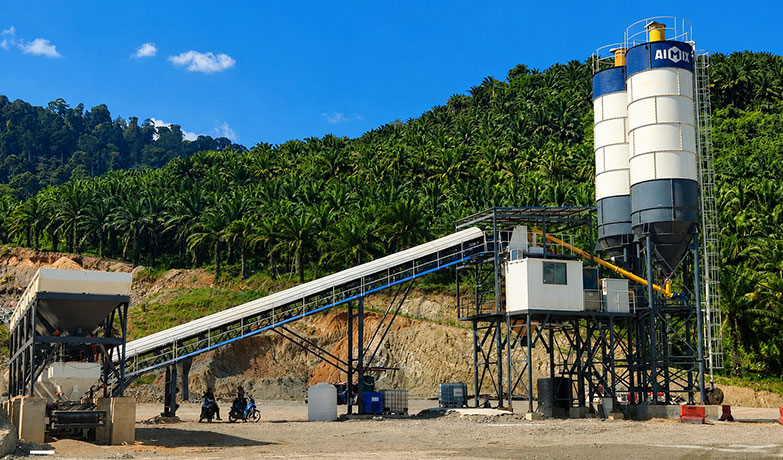

AJ60 Concrete Batching Plant
- Mixing Capacity: 60m³/h
- Mixer: twin shaft mixer, planetary
- Mixer Discharging Volume (L): 1000
- Feeding Volume (L): 1600
- Aggregate Material Quantity (m3): 80/60
- Cement Silo (t) (optional): 2×100
- Application Field: For Road Construction
AJ90 Concrete Batching Plant
- Mixing Capacity: 90m³/h
- Mixer: twin shaft mixer, planetary
- Mixer Discharging Volume (L): 1500
- Feeding Volume (L): 2400
- Aggregate Material Quantity (m3): 15×4
- Cement Silo (t) (optional): 3×100
- Application Field: For Commercial Concrete Production

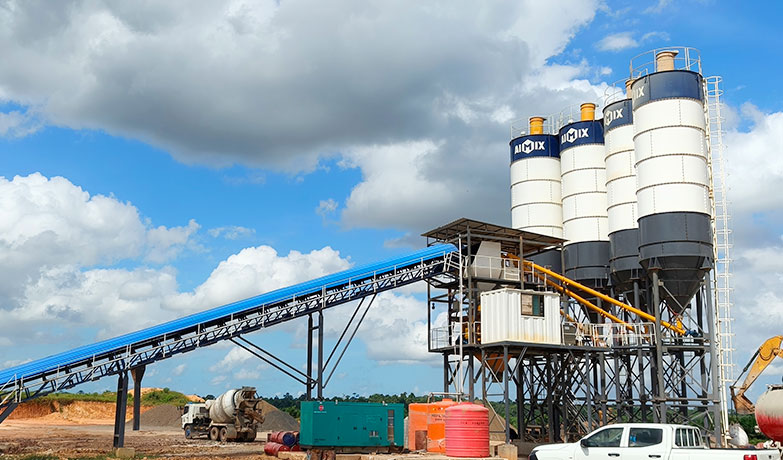

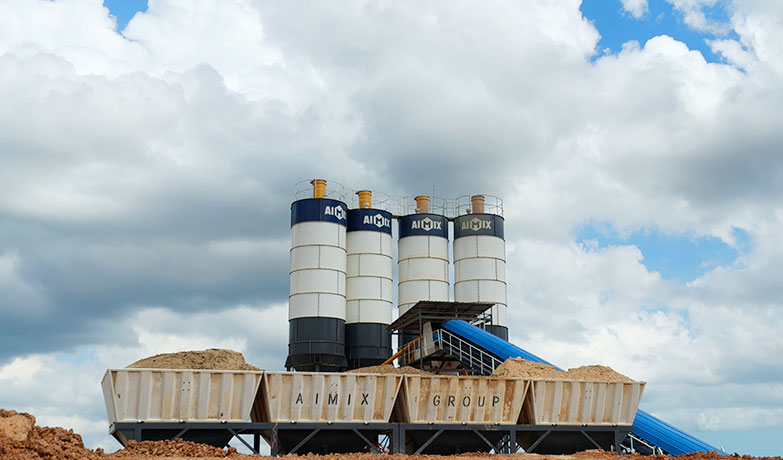

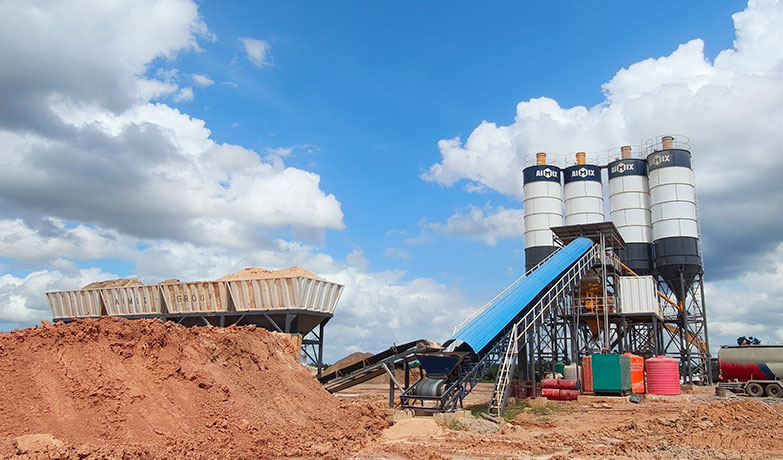

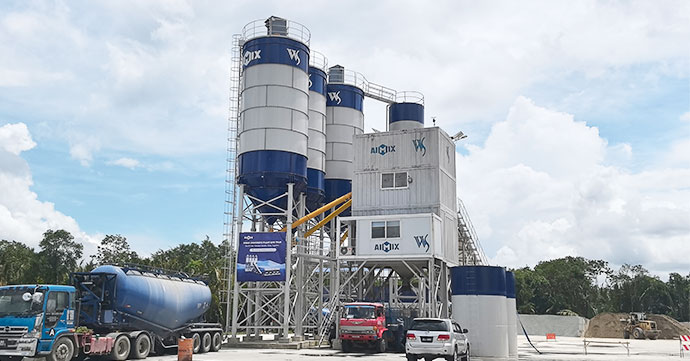

AJ180 Concrete Batching Plant in Malaysia – Five Years in Operation
- Mixing Capacity: 180m³/h
- Mixer Model (Mixer Output L)：3000(SICOMA)
- Operation Time: Mar, 2019
- Aggregate Material Quantity (m3): 15×4
- Cement Silo (t) (optional): 4×100
- Application Field: Commercial Concrete Production and Selling.
- Customer Reviews: “I have been using this equipment for five years. Apart from some paint peeling on the exterior, there were no issues with the operation of the batching plant. AIMIX engineers in Malaysia come to the equipment site regularly to check the equipment and help us solve some minor problems. AIMIX’s service is really good.”
Local Service in Malaysia
Provide optional Turnkey Operations both in the eastern Malaysia and the western Malaysia.

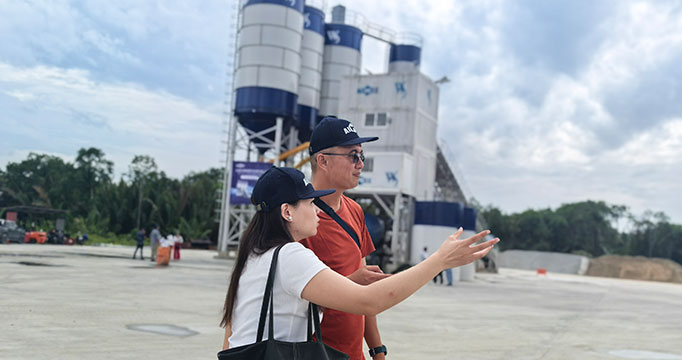

Service Team in Malaysia

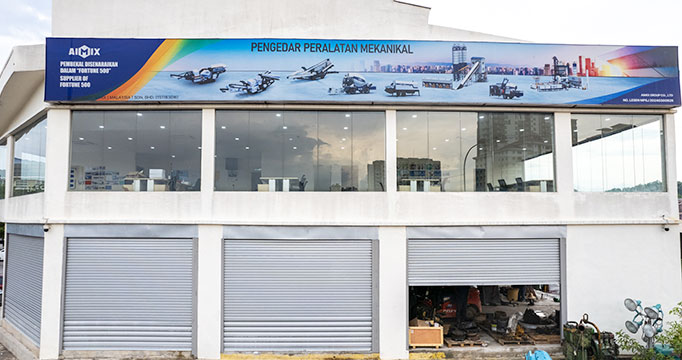

AIMIX has setup a branch in Puchong Selangor, Malaysia and has a service team, offer you local service. Our team of service professionals provides fast, precise support thanks to an integrated relationship with engineering, sales, manufacturing and dealer personnel. Our promise lasts long after a sale and our reputation depends on our customers’ satisfaction.
Main System of Concrete Batching Plant
Aggregate Batching System
Capacity: 560L- 4800L
Bins: 2bins, 3bins, 4bins, Etc
Automatic batching
Control System
Power panel and switches
Collective control terminals
Automatic control unit
Storing System
Bolted or welded
Horizontal or vertical
Storage capacity: 30T to 800T
Mixing System
Twin shaft mixer
Sicoma concrete mixer
Planetary type
Online Service
24hours online service to solve any problems.
3D Drawing
Supply free 3D drawing to plan your projects.
50+ Engineers
Send engineers to your site for instructions.
Customized Design
Professional advising for suitable model of machines.
Local Agent
Has several local agents to supply intimate service.
One Year Warranty
Warranty for any AIMIX products.
